The Significance of Electrical Discharge Machining (EDM) in Machining Processes

Electrical Discharge Machining (EDM) is a high-precision non-traditional machining method based on the principle of electrical discharge. It holds a vital position and plays a significant role in modern manufacturing industry. This article provides a detailed insight into the importance of EDM in machining processes.

  1. High Precision Machining:

EDM enables the high-precision machining of small and intricate parts, achieving accuracy down to a few micrometers or even smaller. This makes EDM the preferred method for manufacturing highly precise components, especially in fields where parts demand exceptionally high dimensional accuracy, such as aerospace, medical devices, and optical equipment manufacturing.

  1. Machining of Difficult-to-Process Materials:

Certain materials like high-temperature alloys and ceramics pose challenges due to their hardness and brittleness, making traditional methods ineffective. EDM, not relying on physical contact, can effectively machine these difficult-to-process materials, expanding the realm of manufacturing possibilities.

  1. Complex Shape Machining:

EDM is not constrained by tool shape, making it suitable for machining various intricate shapes. This is particularly crucial in industries requiring complex geometric shapes, like mold manufacturing and aerospace engine component machining.

  1. Efficient Machining:

While EDM’s machining speed might be relatively slower, it compensates by machining multiple parts simultaneously, thus enhancing efficiency. Additionally, EDM can carry out machining without affecting material properties, reducing the risk of thermal deformation.

  1. Superior Surface Quality:

As EDM does not involve physical contact, it avoids tool wear or vibration during machining, resulting in excellent surface quality. This is significant for applications that demand precise control of surface finish and roughness, such as optical lens production.

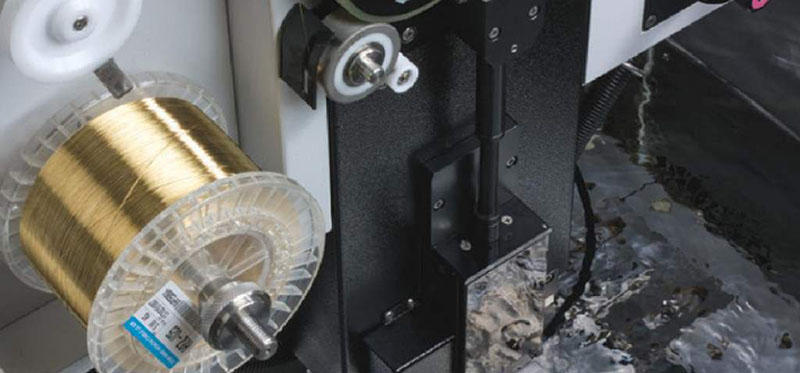

EDM wiring

  1. Manufacturing Complex and Small Holes:

EDM is capable of creating extremely small and complex holes, finding extensive use in micro-machining and micro-fabrication fields.

  1. Reducing Cutting Tool Costs:

In traditional machining, high hardness materials often lead to rapid tool wear, increasing production costs. EDM, eliminating the need for cutting tools, effectively lowers cutting tool expenses.

  1. Manufacturing Complex Cooling Channels:

In fields like aerospace and gas turbine engines, intricate cooling channels are crucial for component performance. EDM can accurately produce these complex channel structures.

In conclusion, the importance of Electrical Discharge Machining (EDM) in machining processes cannot be overstated. It not only achieves high precision, processes difficult materials, and machines complex shapes but also enhances efficiency, yields superior surface quality, produces complex and small holes, reduces cutting tool costs, and facilitates the manufacturing of intricate cooling channels. As manufacturing technology continues to evolve, EDM will remain a pivotal force, providing robust support for advancements and innovations in the manufacturing industry.

We has 2 Japanese Sodick wire EDM machines and 2 Sodick EDM machines. Those familiar with the precision machining industry are certainly acquainted with this brand. The model of one of our machines is VL600QS/LN2, with a machining dimension of 600x350x272mm. The other machine is of model ALN400QS, with a machining dimension of 400x300x252mm. The machining accuracy can achieve up to ±0.002mm. So welcome to send us drawings for free quotation.
